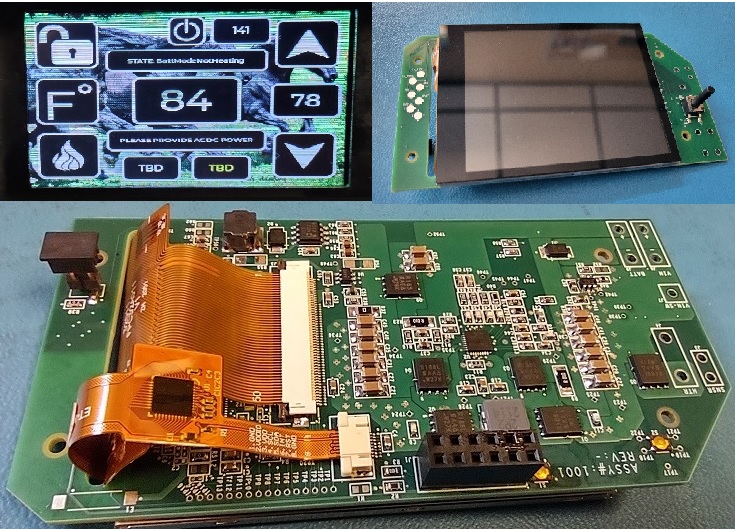

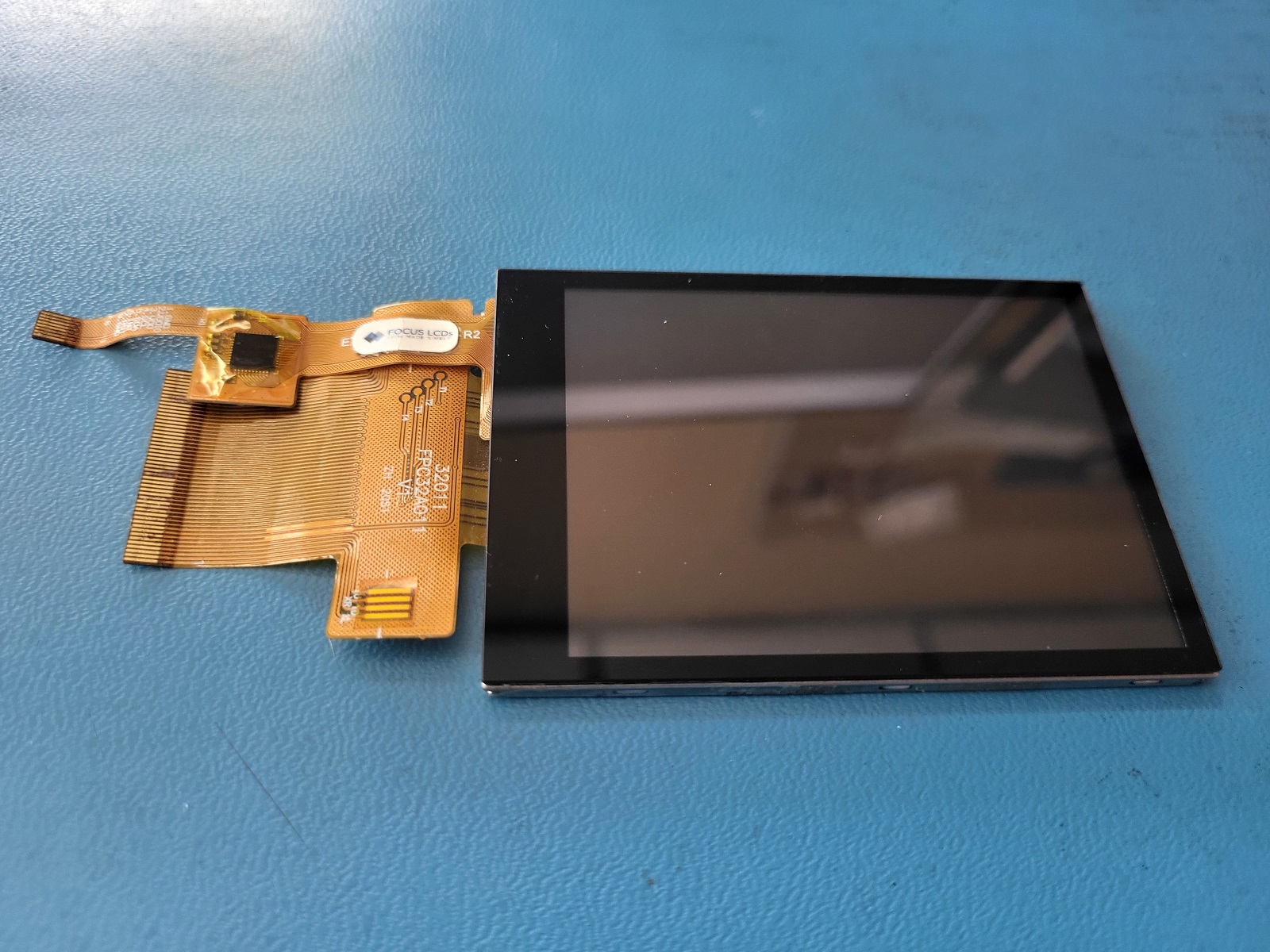

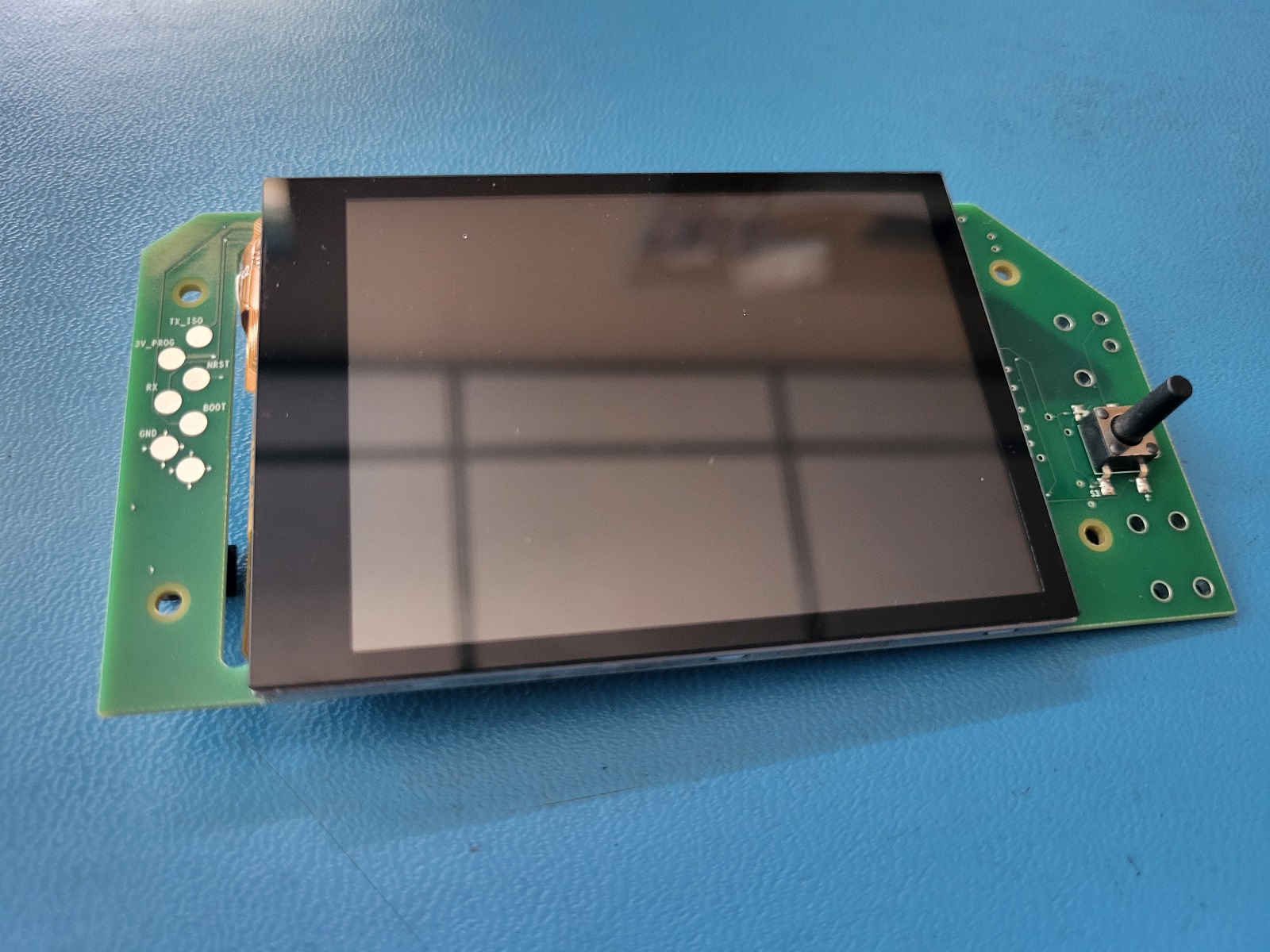

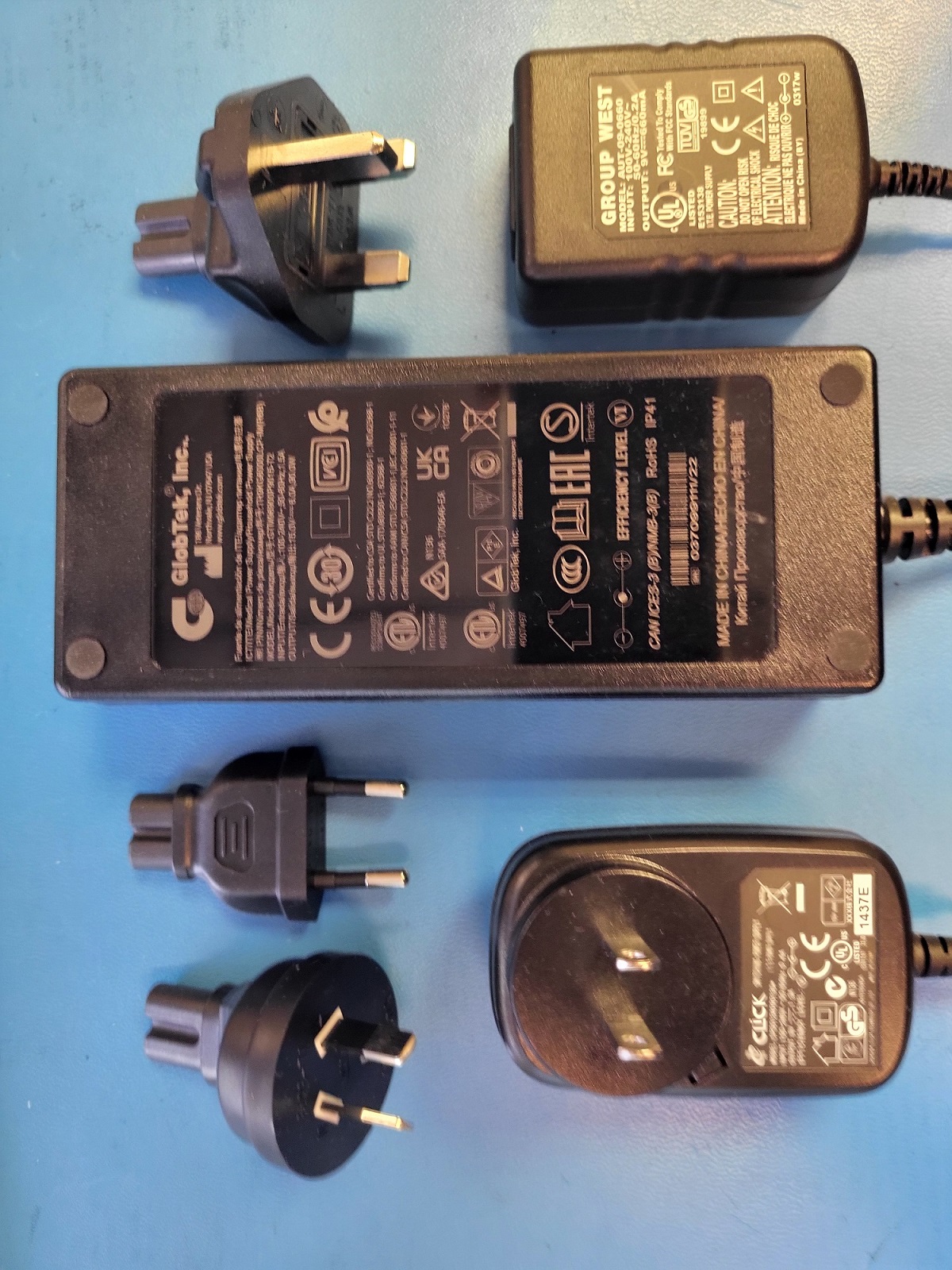

NEW! This super-versatile, WiFi-ready, 65-watt mobile device operates with either Lithium Polymer (LiPoly) or Nickel-Metal Hydride (NiMH) batteries providing USB Type-C and USB Power Delivery (PD) options. The device charges from an AC/DC wall adapter and discharges through USB-C or proprietary connectors. The human interface is a 3.2" 240x320 TFT display with capacitive touch. Inputs for monitoring heat and power with external sensors are provided.
POWER SECTION SPECS:
Supports 3.5- to 26-V input source

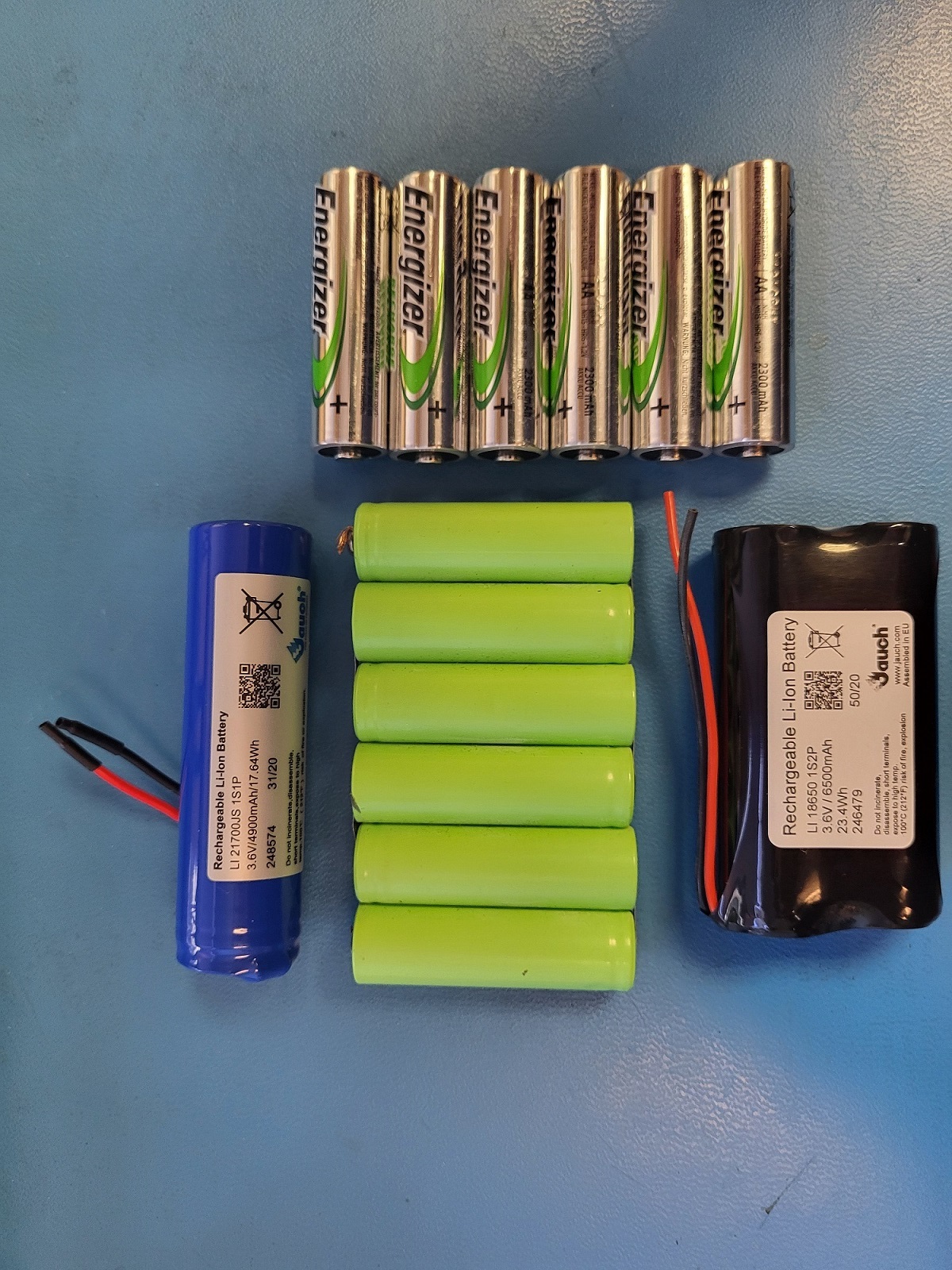

– 3.5- to 26-V, 0- to 6-A input operating range and 1–4 cell battery configuration
– Supports USB 2.0, USB 3.0, USB 3.1 (USB Type-C®) and USB_PD
– Supports USB OTG with 3- to 26-V adjustable output
• Narrow VDC (NVDC) power path management
– Battery supplements the system when the adapter is fully-loaded
• Power and current monitor
• Safety
– Thermal shutdown
– Input and system overvoltage protection
– MOSFET overcurrent protection
market: USA and Western Europe
application: mobile power for multiple custom portable heating devices

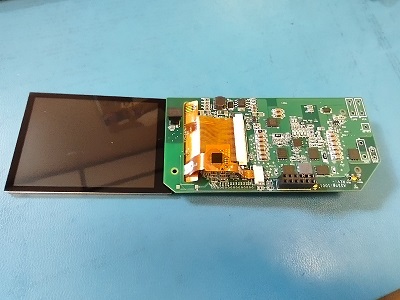

hardware components: ESP32 micro, WiFi, 3.2" 240x320 TFT display with capacitive touch panel, 1-4 cell multi-chemistry (NiMH or Li-ion) Narrow VDC buck-boost battery charge controller, system power monitor, 'processor hot' monitor

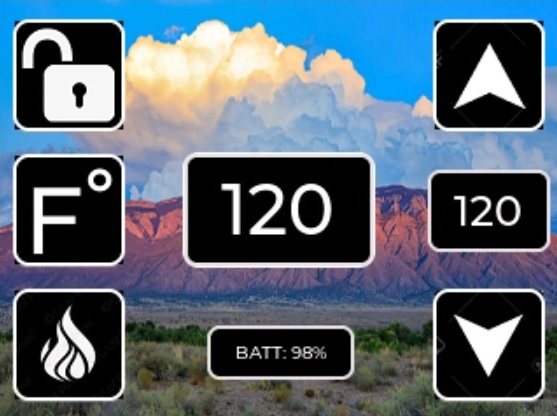

software components: multi-chem battery fuel-gauge, graphical user interface, optimized temperature control

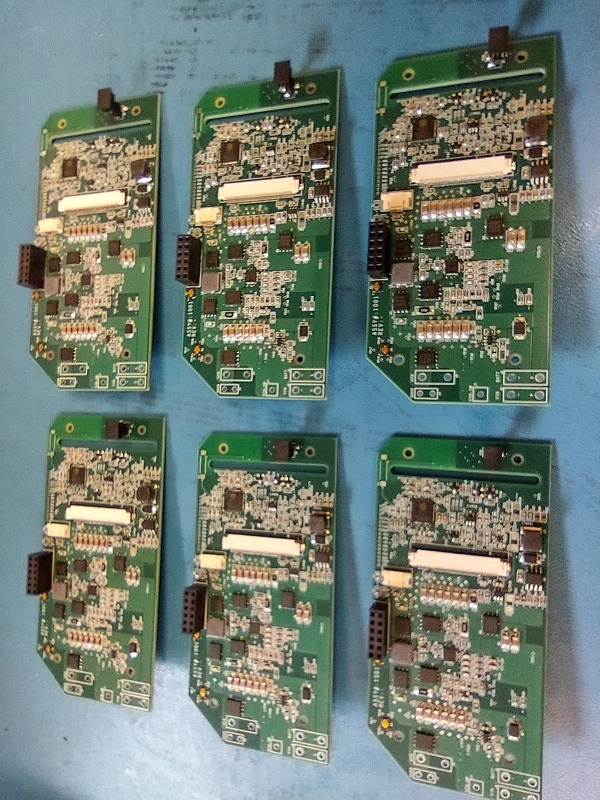

manufacturing: USA vendors providing PCB fabrication, circuit card assembly, board-level test, box-testing, and packaging
